The mud wall pattern

MWP_0453

Product Introduction



Product name

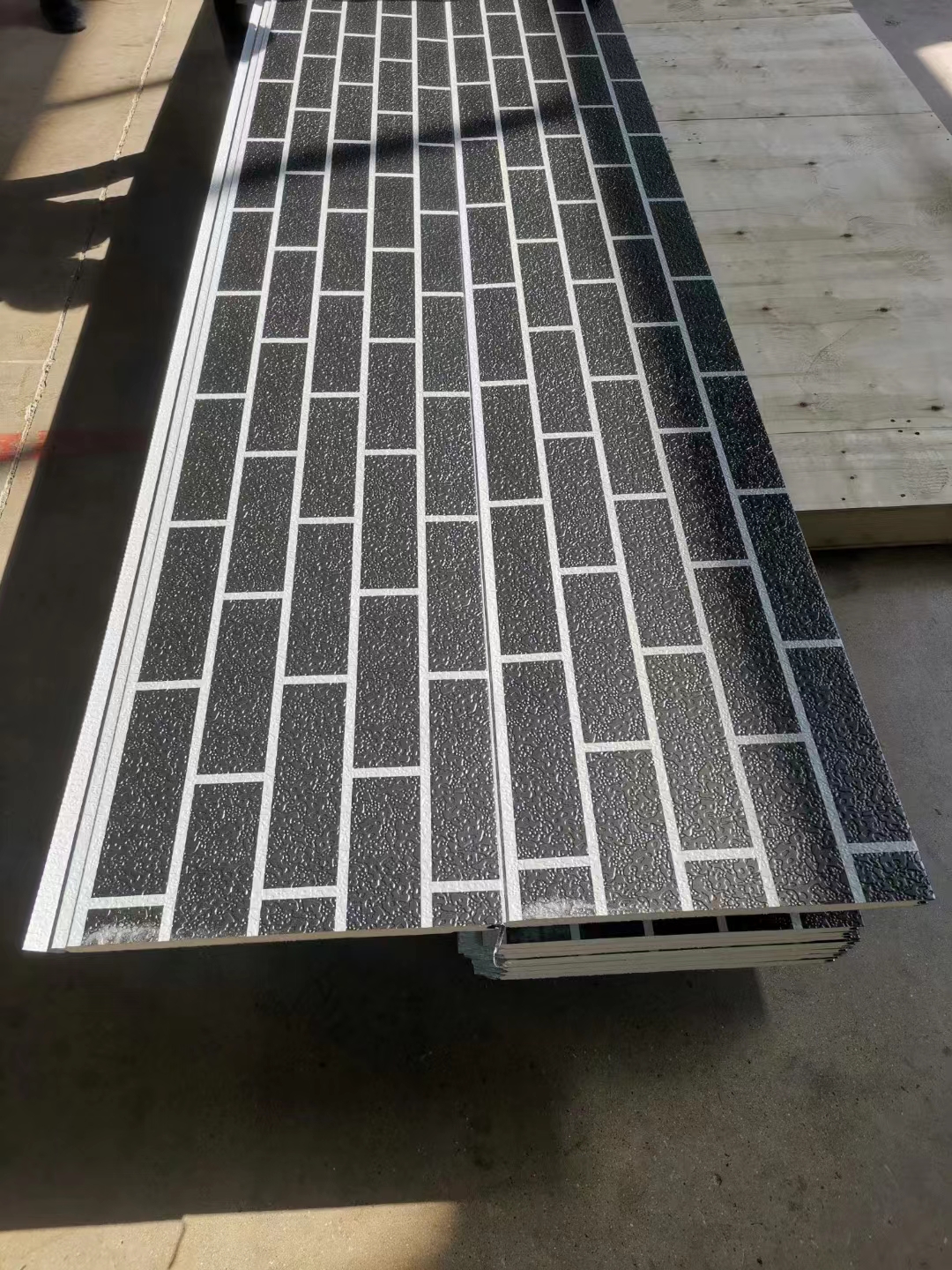

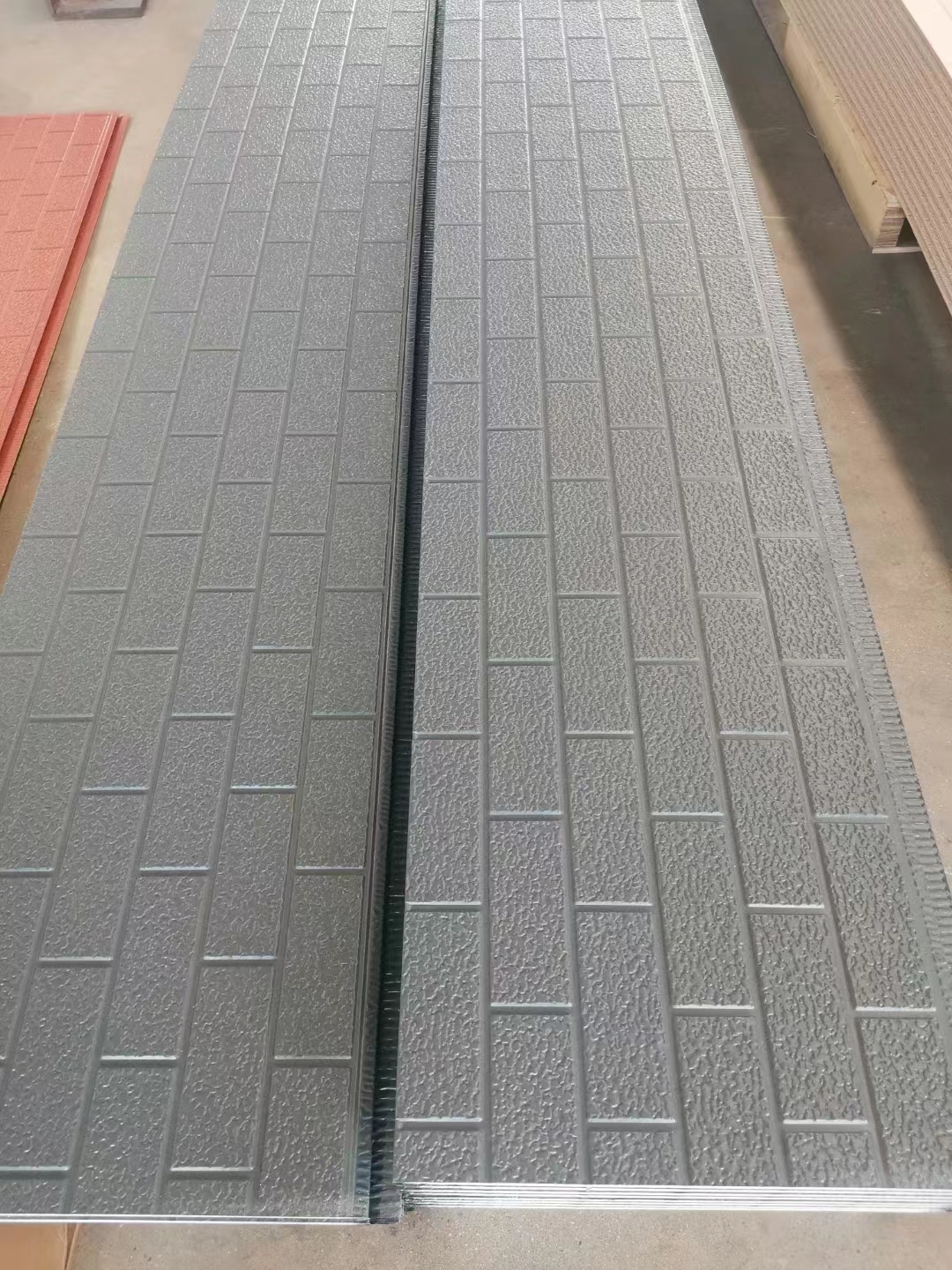

Thermal insulation Carved Metal composite sandwich panels

Width

380mm

Length

3800mm/5800mm/customized

Thickness

16mm

Core material density

(PU) 40 kg/m3

 Thickness of bottom material

0.3mm

Color

RAL color

Panel weight

3.5-3.7kg/m2

Package

10pcs/carton , 8pcs/carton

 Application

 Temporary building,villa,large public building,prefab house

Thermal conductivity

0.022W(10℃)/0.0024W(25℃)




Composition

Face:Al-Zn steel sheet

Core:hard polurethane foam

Back:aluminum foil

Advantage

Lightweight
